Experiment #7: Light as a Tool

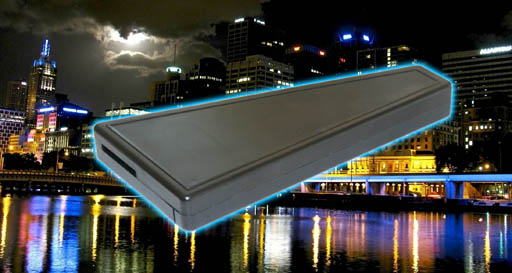

The spectroscope in the picture is the updated spectroscope that is now in the kits.

The entire light spectrum (also known as the electromagnetic spectrum) span light waves that are miles long to waves that are extremely short. The light we see (visible light) only spans about 1.5% of then entire light spectrum. So we would be legally blind considering what we could see.

Let’s say this image is made up of the whole electromagnetic spectrum. Roll the cursor over the image to see how much of the whole spectrum we actually see.

Yes, this is how blind we are. We are only picking up about 1.5 percent of the picture that we could see if we could see the whole electromagnetic spectrum.

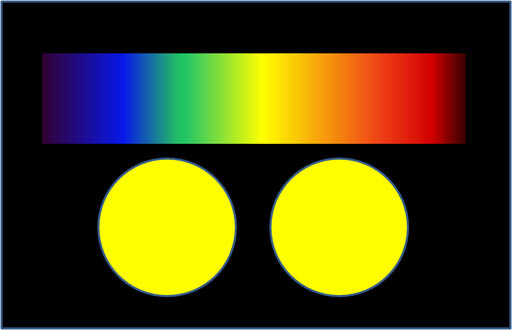

spectrum Even if we focus just on the visible light that we can see, we still have some weaknesses in our vision. In a rainbow we see pure colors. However, our eyes can't see the difference between a pure color that has a specific wavelength (yellow is about 570 nanometers) or a combination of red and green colors. So the left circle could be a pure yellow light, but the right circle could be small dots of red and green light that our brains interpret as yellow.

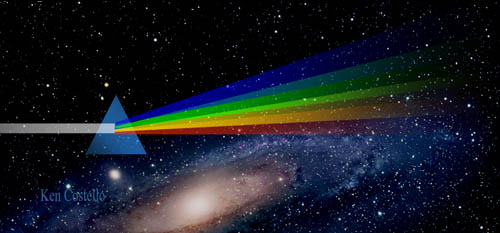

Over 300 years ago Newton experimented with a prism and realized that white light was actually all colors combined. It revealed a weakness in our human eyes. We can see millions of colors, but we can't tell if a color is made from one color or mixtures of colors.

A spectroscope is similar to a prism in that it can break up light into its component.

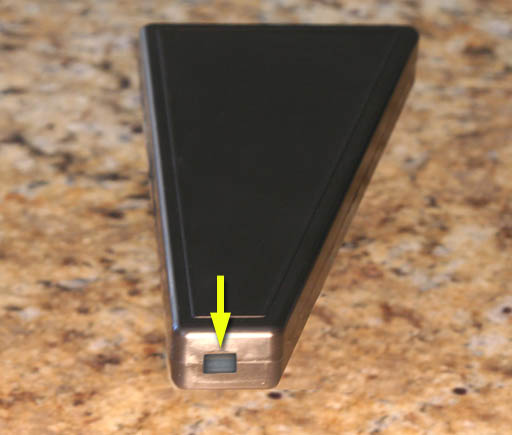

At one end of the spectroscope is a square film of material that acts like a prism. The film is called a diffraction grating. It is made by putting thousands of grooves on a plastic film. This bends the light coming through it and, in essence, causes the light to spread out into its different wavelengths of light (colors). This is the end of the spectroscope you look through.

Look through this end now and aim the wide end at the white block below. Hold the end about 6 inches from the screen.



Look at this block of white with spectroscope. You may have to flip it over to see the numbers correctly.




spectrum LCD screen white

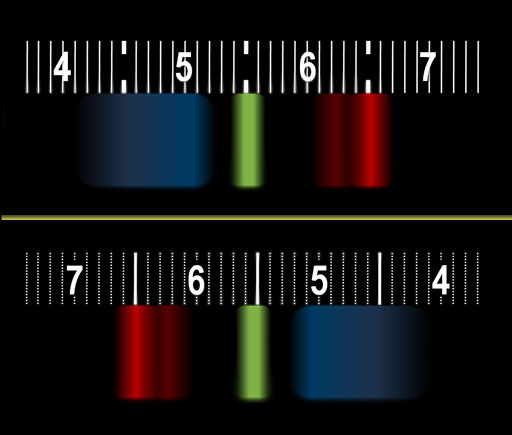

The spectroscope in your kit could be one of two brands. One has a scale like the top image and the other brand has a scale like the bottom image (They're reversed). This the what I see when viewing the white block above on my LCD using the spectroscope. The colors that TVs and computer monitors use to produce millions of colors are simply a combination of red, green, and blue. The numbers you see are the wavelengths of the light measured in hundred nanometers. (If you don't see the numbers, you may need to wear reading glasses.) The bright red band has a wavelength of 650 nanometers. The green band is about 550 nanometers. The wide blue band ranges from 450 nanometers (nm) and 520 nm. The spectrum from your monitor might look different but you should see red, green, and blue bands.
Remember, our eyes can be fooled into seeing yellow by seeing a combination of red and green lights that are very close to each other. Your computer monitor has small pixels of green and red to make us see yellow. Look at the yellow block below with the spectroscope. You should be about 6 inches from the computer screen.







spectrum of yellow on LDC screen Here we see that the yellow color above is not a pure yellow. It's a mix of green and red. Green is just below yellow and ranges from about 500 to 560. TVs and Computer monitors make us see yellow by lighting up red and green phosphors (pixels). You might see a little bit of blue in your spectrum, but it's not normally there or needed for bright yellow.

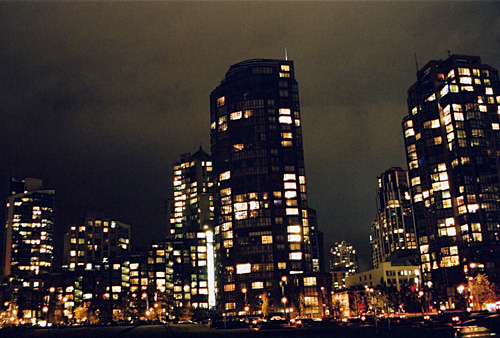

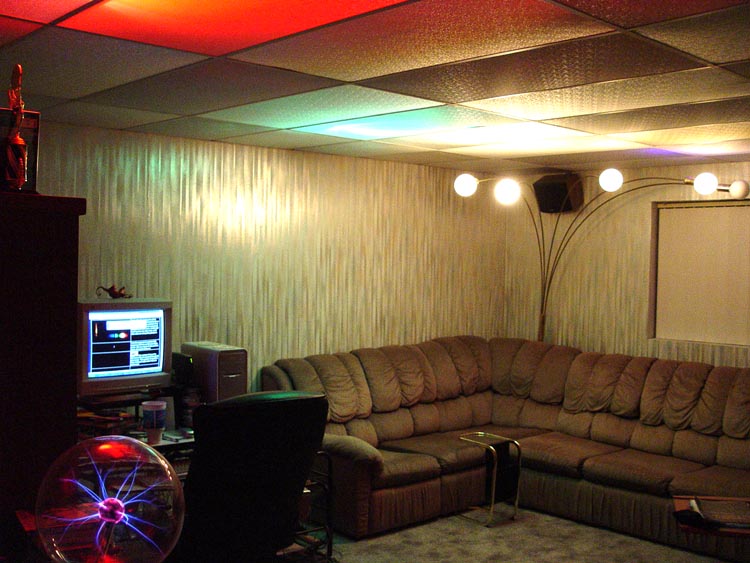

Our eyes see lights but can't really tell what kind of light it is. For example, in the picture, we aren't sure which rooms are lit by fluorescent lights or incandescent lights (light bulbs). With a spectroscope we could.

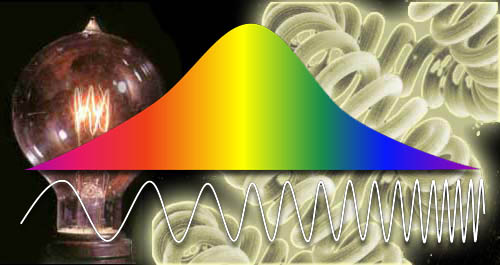

Light produced from objects that are hot (like a filament) creates a spectrum of colors that is smooth and follows a bell curve. At around 5,000 degrees Celsius an object looks white because the spectrum centers around yellow with lesser amounts of green, blue, purple at smaller wavelengths, and lesser amounts of orange and red at longer wavelengths.

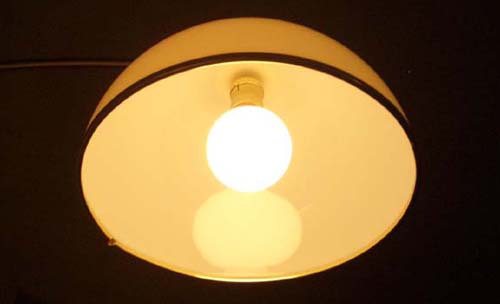

Here is an incandescent bulb that emits light from a hot filament.

Below is a spectrum seen with the spectroscope. You can see that the colors are continuous.

rainbow spectrum in spectroscope
The colors will look smeared together rather than banded. You may get a better spectrum by letting the light bounce off a white piece of paper. When viewing a light directly, the brightness is somewhat uneven.
Sunlight is in the same category as an incandescent bulb. The hot gases in the sun produce a continuous spectrum of light as seen in this rainbow.
rainbow spectrum in spectroscope
Here is what the spectroscope sees with white objects lit by sunlight. Note: This is not aimed at the sun (which is not safe), but aimed at something white that is in the sunshine or even in the shade. You see a continuous shade from red to purple. It's basically the same as a rainbow.
Fluorescent lights however, produce light a whole different way. In the below diagram we see mercury atoms. At high voltage the outer electrons of mercury are stripped off. The will fall back into a neighboring mercury atom. As they do, they give off a photon of ultraviolet light (which we can't see). However, this UV photon strikes the inside of the fluorescent bulb which is coated with various phosphors. A phosphor is a mineral that absorbs UV light and converts it to visible light. Zinc sulfide (ZnS) doped with silver and aluminum emits blue light. Many phosphors use exotic metals to create different colors.
The phosphors do not make a continuous range of colors but emit colors at a few different regions of the spectrum. To get white light they must emit red, green (middle), and blue. This is enough to make white. Some bulbs emit other colors in order to get a more complete spectrum of colors.

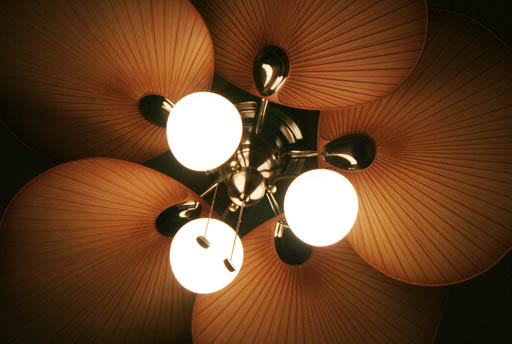

Here are some fluorescent lighting on my ceiling fan. It seems white, but is it the same as the white from incandescent bulbs?

No, through the spectroscope we see they aren't the same white. When fluorescent light passes through the spectroscope, the white light is spread out so that we can see the separate bands of colors. Here, it seems there are five different phosphors. For us to think we see white, colors from middle and both ends of the spectrum need to be present. Those are red, green or yellow (middle), and blue or purple. This is enough to give the appearance of white. Extra bands help fill in more colors.

The spectroscope gives us insight into the makeup of the light sources. We could use this feature to quickly identify the type of lighting. For example, let's say we work at a company that wants to save money by switching all lights to the energy saving fluorescent type. You can walk through the building and easily spot the incandescent bulbs that haven't been changed.

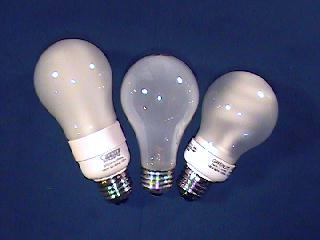

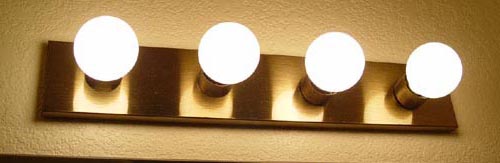

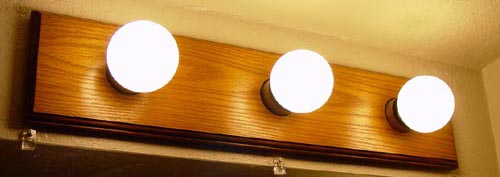

Here are two sets of globe-style bulbs. Just by looking at them, we can't tell if they are the energy saving type (fluorescent) or the incandescent type. But looking at them through the spectroscope (from 2 to 10 feet away) we see a major difference.

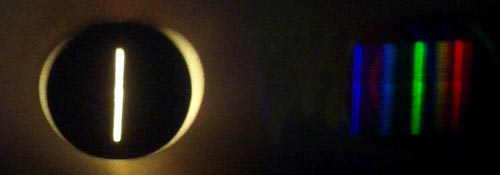

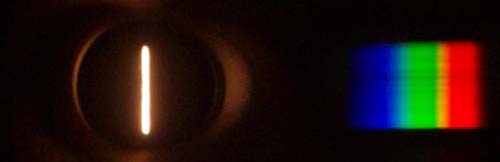

The top spectrum goes with the top image above (4 bulbs). The bottom spectrum goes with the bottom picture of 3 bulbs. (These spectrums are from the old spectroscope that didn't have a scale) You see the continuous spectrum of incandescent bulbs (top) and the banded spectrum of the energy saver fluorescent bulbs (bottom). So we'd know quickly that the top 4 bulbs need to be replaced.

These fluorescent round bulbs have a similar spectrum as the long fluorescent bulbs. It shows two blue, one green, one orange (faint), and one red band.

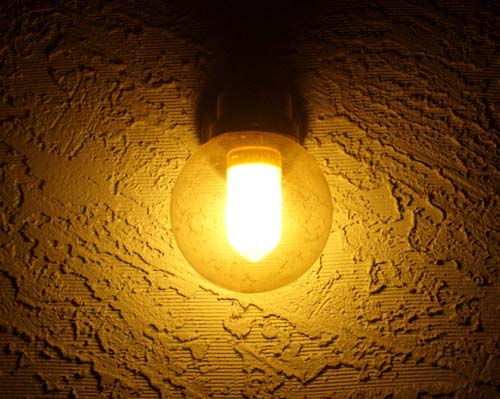

This is a long-life bug light. Yellow color doesn't attract insects as much.

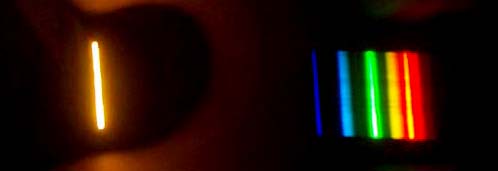

Its spectrum shows the signature of a fluorescent bulb. However, this one seems to have a yellow band and a brighter red band, which would explain its yellowish color. There's probably more of these phosphors (again this photo is of the older spectroscope that didn't have the wavelength scale)

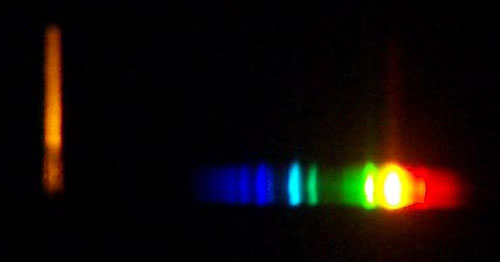

To the left is the spectrum of a sodium lamp used for street lighting. Sodium metal heated produces a strong yellow light. This spectrum shows a very bright (overexposed) yellow band. Sodium normally only produces a yellow color, but under pressure extra bands of colors are produced. So street lamps are normally high pressure sodium lamps to give them more a white color.

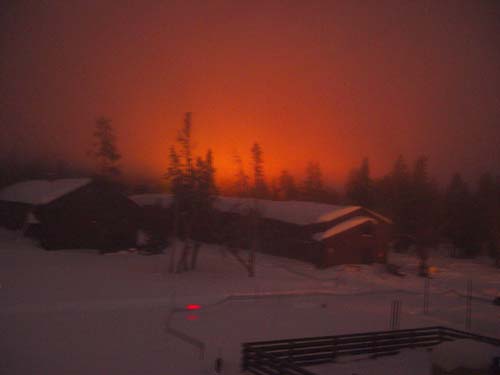

Two winters ago, I went to Yellowstone. About 3 in the morning I woke up and decided to look outside. I saw this mysterious glowing light in the distance, so I took a picture. It shimmered for a few minutes and then faded away. At the lodge where I was staying, there were no nearby towns or places that had light. I was afraid it was an outpost that was on fire or a signal fire. I went to the front desk and showed the image on my laptop to the security officer. He mounted his snowmobile and went to investigate. If I had my spectroscope, I could have solved the mystery on my own. The officer discovered that the glow was coming from some sodium lamps outside some cabins about a 1/4 mile away. The low moving fog caused the red glow to come and go. A spectroscope would have revealed the bands of a sodium lamp. Light from flames would have been a continuous spread of colors.
Your lab assignment is to examine light sources in your home and the street lights by your house. Give me a report of what you find. Again, don't point the spectroscope at the sun.
Take a picture of two or more light sources that you examined through the spectroscope. Take a picture of yourself or helper looking at a light source with your spectroscope. Notice, that I'm using a piece of white paper to examine the light of this bright halogen lamp. Light bouncing off the paper is better than looking into too bright of a light source. Again report what your spectrums (spectra) look like. This light is a halogen light. Halogen light have small bulbs and run very hot. They also produce UV light. Some bulbs have glass that blocks the UV light. Some do not.
Email your report along with the pictures.
